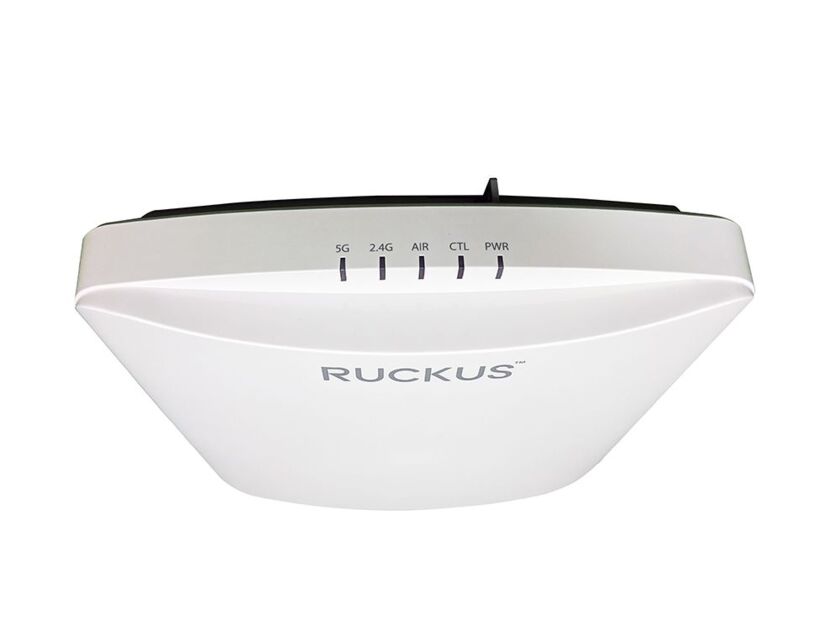

RUCKUS R750 Indoor Access Point Features
The R750 is based on the latest Wi-Fi 6 standard and bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi. The R750 is the first ever Wi-Fi 6 AP to be granted Wi-Fi CERTIFIED 6 status by the Wi-Fi Alliance. As part of Wi-Fi Alliance's testbed, the R750 validates other devices for Wi-Fi CERTIFIED 6 interoperability certification.
The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.
The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with Bluetooth® Low Energy, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.
The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.
The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.
The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with Bluetooth® Low Energy, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.
The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.
Specifications for RUCKUS R750 Indoor Access Point
Clasificación de productos
Disponibilidad regional | Asia | Australia/Nueva Zelanda | EMEA | América Latina | América del Norte |
Tipo de producto | Punto de acceso interior |
Marca del producto | RUCKUS® |
Especificaciones generales
Antenna Patterns, per band | 4000+ |
Antenna Gain | Up to 3 dBi |
BeamFlex | Sí |
ChannelFly | Sí |
Usuarios concurrentes | 1024 |
Controller Support | SmartZone RUCKUS | RUCKUS Unleashed™ | RUCKUS ZoneDirector | Standalone |
Puertos Ethernet | 1 x 1 GbE | 1 x 2,5 GigE |
Compatibilidad con IoT | Incorporación de IoT |
Número de radios | Radio doble |
PD-MRC | Sí |
PHY Rate at 2,4 GHz, maximum | 1148 Mb/s |
PHY Rate at 5 GHz, maximum | 2400 Mb/s |
Combined Max PHY Rate | 3548 Mb/s |
Cadenas y transmisiones de radio | 4 x 4:4 |
Rx Sensitivity at 2,4 GHz | -102 dBm |
Rx Sensitivity at 5 GHz | -102 dBm |
SmartMesh | Sí |
USB | USB 2,0 |
Tipo de lugar | Educación | Hotelería | Oficinas/minoristas | Lugar público |
Subtipo de lugar | Cafetería/Salón de usos múltiples | Biblioteca | Vestíbulo/espacios comunes | Salas de reuniones | Salas VIP del establecimiento |
Bandas Wi-Fi compatibles | 2,4 GHz | 5 GHz |
Generación de Wi-Fi | Wi-Fi 6 |
Estándar de la interfaz Wi-Fi | IEEE 802.11a/b/g/n/ac/ax |
Especificaciones del entorno
Temperatura en funcionamiento | 0 °C to +50 °C (+32 °F to +122 °F) |
