RUCKUS H550 Indoor Access Point
High-End Wall-Mounted Wi-Fi 6 2x2:2 Indoor Access Point with 1,8 Gbps max rate, Switch and Embedded IoT
RUCKUS H550 Indoor Access Point Features
In hotels, apartment buildings, and other multi-dwelling structures, wireless connectivity can carry a hefty price tag. You need to connect a wide range of wired devices - IPTV set-top boxes, IP phones, networked minibars - IoT devices like smart locks and sensors - while delivering a great wireless experience for guests.
The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy, as well as other protocols via optional USB modules. Put it all in a sleek low-profile design that can be discretely installed over a standard electrical outlet.
Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy, as well as other protocols via optional USB modules. Put it all in a sleek low-profile design that can be discretely installed over a standard electrical outlet.
Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
Specifications for RUCKUS H550 Indoor Access Point

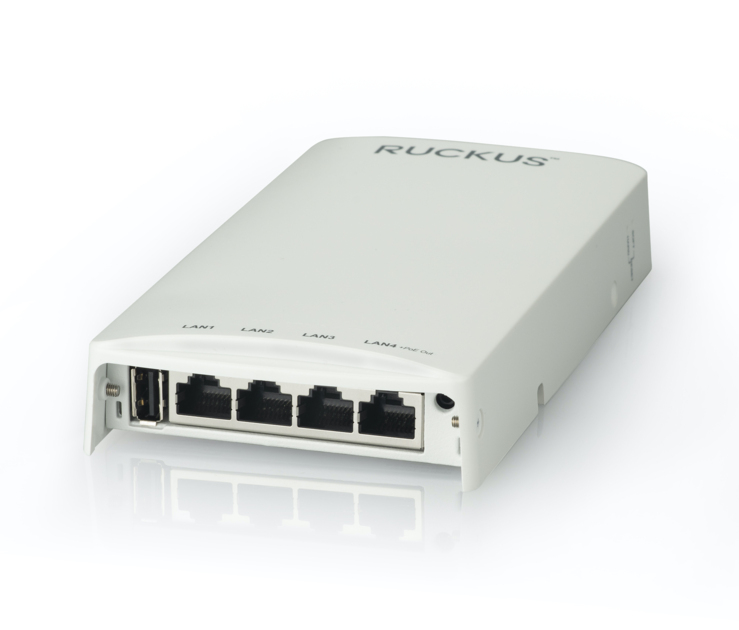

![H550 | RUCKUS H550 Indoor Access Point [H550_UpRight]](https://www.ruckusnetworks.com/globalassets/digizuite/966223-h550-upright.png/medium?mediaformatid=50103)
Clasificación de productos
| Disponibilidad regional | Asia | Australia/Nueva Zelanda | EMEA | América Latina | América del Norte |
| Tipo de producto | Punto de acceso interior |
| Marca del producto | RUCKUS® |
Especificaciones generales
| Antenna Patterns, per band | 16 |
| Antenna Gain | Up to 1 dBi |
| BeamFlex | Sí |
| ChannelFly | Sí |
| Usuarios concurrentes | 512 |
| Controller Support | RUCKUS Cloud™ | SmartZone RUCKUS | RUCKUS Unleashed™ | RUCKUS ZoneDirector |
| Puertos Ethernet | 5 x 1 GbE |
| Compatibilidad con IoT | IoT Onboard (dual-concurrent) |
| Número de radios | Radio doble |
| PD-MRC | Sí |
| PHY Rate at 2,4 GHz, maximum | 574 Mb/s |
| PHY Rate at 5 GHz, maximum | 1200 Mb/s |
| Combined Max PHY Rate | 1774 Mb/s |
| Cadenas y transmisiones de radio | 2 x 2:2 |
| Rx Sensitivity at 2,4 GHz | -100 dBm |
| Rx Sensitivity at 5 GHz | -100 dBm |
| SmartMesh | Sí |
| USB | USB 2,0 |
| Tipo de lugar | Educación | Hotelería |
| Subtipo de lugar | Salas de invitados | Residencia estudiantil |
| Bandas Wi-Fi compatibles | 2,4 GHz | 5 GHz |
| Generación de Wi-Fi | Wi-Fi 6 |
| Estándar de la interfaz Wi-Fi | IEEE 802.11a/b/g/n/ac/ax |
Especificaciones del entorno
| Temperatura en funcionamiento | 0 °C to +40 °C (+32 °F to +104 °F) |
