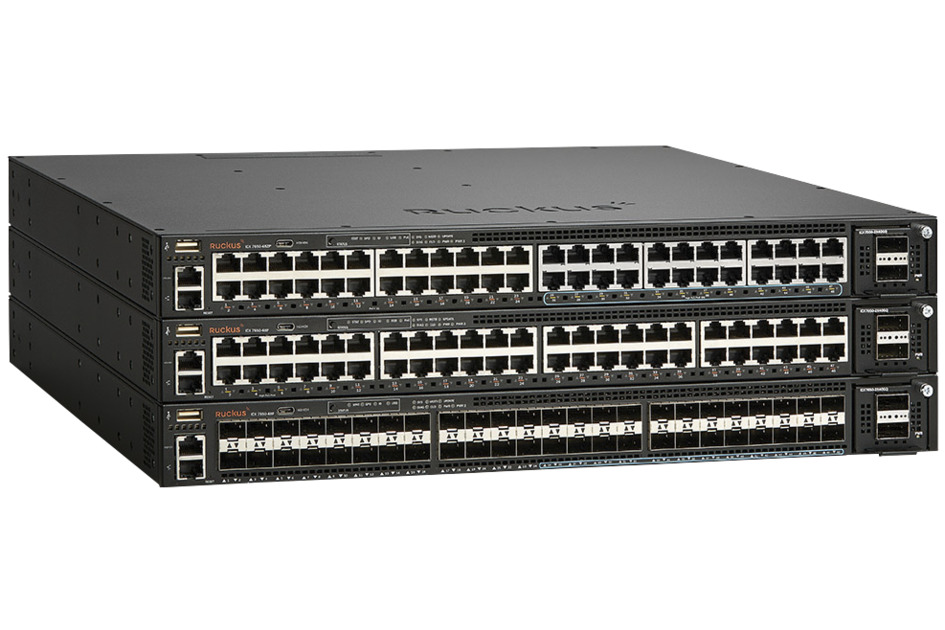

Conmutadores RUCKUS ICX 7650

Base Product

High-End Enterprise-Class Stackable Access/Aggregation Switch with 100GbE

Configure Product Variants

RUCKUS ICX 7650 Switches Features

The RUCKUS ICX 7650 Switch is designed to meet the new challenges of the multi-gigabit wireless era. It delivers non-blocking performance, high availability, and scalability with multi-gigabit Ethernet access (2.5/5/10GbE), high PoE output with 802.3bt** support as well as 10 Gigabit Ethernet Aggregation and 40/100GbE uplink options.

The ICX 7650 is an ideal solution for future proof campus edge deployment as an underlay to support the most demanding next generation wireless infrastructure. Additionally the fiber version of the switch delivers a highly cost effective medium density 1/10GbE aggregation solution with 24 SFP & 24SPF+ ports and 40/100GbE uplinks.

The ICX 7650 supports Ruckus Campus Fabric* as a Control Bridge (CB) delivering unmatched flexibility, scalability and simplified management for campus network deployments.

**Up to 90W per port, IEEE 802.3bt standard pending ratification. Compatible with uPoE.
  • Up to 24x 1/2.5/5/10G multi-gigabit Ethernet ports
  • Up to 2x 100GbE uplink or stacking ports
  • Up to 2x 40 GbE uplink or 4x 40GbE stacking ports
  • PoE+/802.3bt** up to 90W per port
  • Up to 1500W PoE budget with two power supplies
  • Dual load sharing power supplies for system power redundancy
  • Redundant uplink/stacking ports
  • Instantaneous hitless failover to a standby controller
  • Stack level ISSU for continuous operations
  • Hot-insertion/removal of stack members to avoid service interruption
  • IPv4 and IPv6
  • BGP, OSPF, VRRP, PIM, PBR
  • VRF
  • MCT (available in a future software release) RUCKUS SmartZone support delivers unified wired & wireless management and network automation
  • Works seamlessly with RUCKUS Wi-Fi access points
  • RUCKUS SmartZone and RUCKUS Cloud support delivers unified wired & wireless management

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product VariantsClear

Configure and display product variants of RUCKUS ICX 7650 Switches by selecting options

Cargando...
RUCKUS ICX 7650-48F RUCKUS ICX 7650-48F
Mid-Range Aggregation 48 Ports 1G/10G SFP/SFP+ Switch
RUCKUS ICX 7650-48P RUCKUS ICX 7650-48P
High-End 48 Ports 1G PoE Switch
RUCKUS ICX 7650-48ZP RUCKUS ICX 7650-48ZP
High-End Access 48 Ports MultiGigabit PoE Switch

Specifications for RUCKUS ICX 7650 Switches

ICX7650 | RUCKUS ICX 7650 Switches [ICX7650-access-family-stack]
Disponibilidad regional Asia | Australia/Nueva Zelanda | EMEA | América Latina | América del Norte
Tipo de producto Conmutador de Ethernet
Marca del producto RUCKUS®
Switching Capacity, maximum 1128 Gb/s
1 GbE RJ45 Ports, quantity, maximum 48
1 GbE SFP Ports, quantity, maximum 24
10 GbE SFP+ Ports, quantity, maximum 24
1/2,5/5/10 GbE RJ45 Ports, quantity, maximum 24
40 GbE QSFP Ports, quantity, maximum 2
100 GbE QSFP28 Ports, quantity, maximum 2
PoE Power Budget, maximum 1500 W
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 2400 Gb/s
PoE/PoE+
Stacking
sFlow
Layer 3 (STATIC, RIP, OSPF)
OpenFlow with Hybrid Port Mode
Campus Fabric Technology
Redundant Power Option
Hot Swap Internal Power Supplies & Fans
802.3bt2 (90 W PoE Power per Port)
VRF
EEE (Energy Efficient Ethernet)
MACsec
BGP
Reversible Airflow Option
VXLAN
