RUCKUS R770 Indoor Access Point
Very-High-Performance Tri-Radio Wi-Fi 7 2x2:2 | 4x4:4 | 2x2:2 Indoor Access Point with 12.22 Gbps max rate and Embedded IoT
Specifications for RUCKUS R770 Indoor Access Point

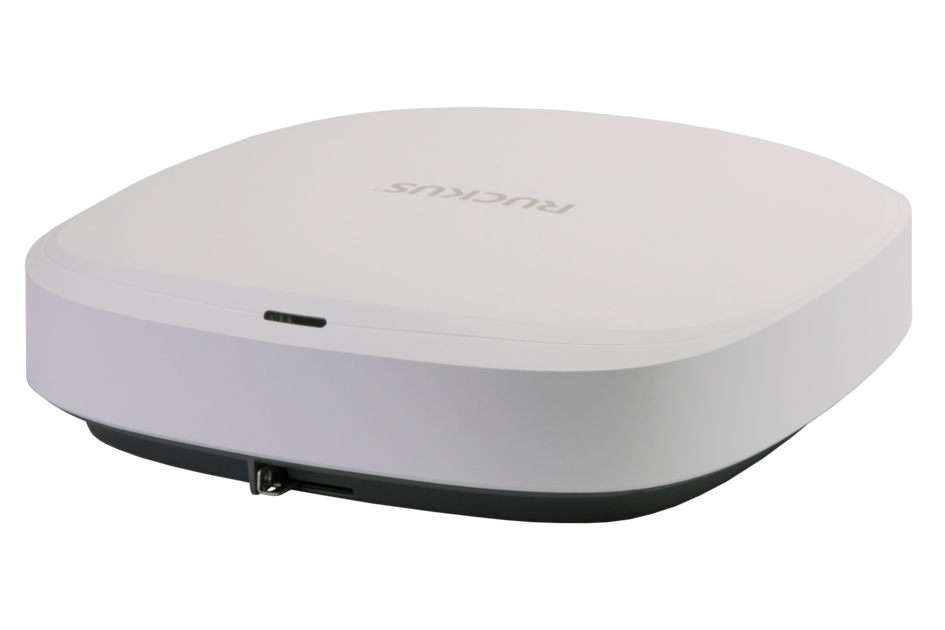

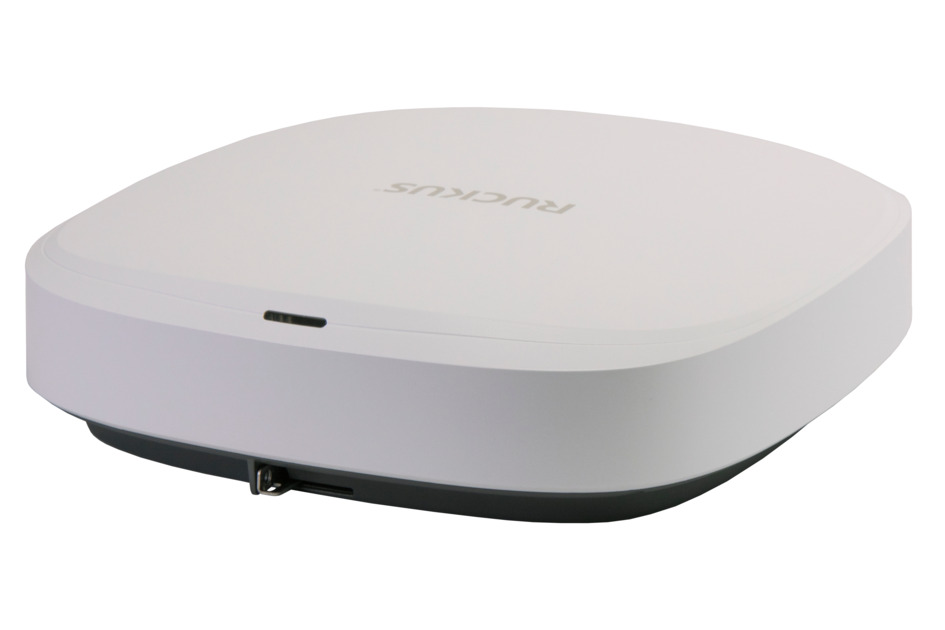

![R770 | RUCKUS R770 Indoor Access Point []](https://productresources.commscope.com/admin/ImageServer.php?ID=733892ef86f4f5731a1da6731c482717b9b400a35d4540d155447d2aa248710f:77524@pjk349&class=Mamfile&rand=31e8ab4c6af7a25cf73418b27d7166ba&omitPreview=true&downloadname=RUCKUS+R770+Access+Point+-+0L5A7207.png&preset=11)
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Indoor access point |
| Product Brand | RUCKUS® |
General Specifications
| Antenna Patterns, per band | 4000+ |
| Antenna Gain | Up to 4 dBi |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 1024 |
| Controller Support | RUCKUS One™ | RUCKUS SmartZone | RUCKUS Unleashed™ | Standalone |
| Ethernet Ports | 1 x 1 / 2.5 / 5 /10 GbE | 1 x 1 GbE |
| IoT Support | IoT Onboard |
| Number of Radios | Tri-Radio |
| PD-MRC | Yes |
| PHY Rate at 2,4 GHz, maximum | 689 Mb/s |
| PHY Rate at 5 GHz, maximum | 5765 Mb/s |
| PHY Rate at 6 GHz, maximum | 5765 Mb/s |
| Combined Max PHY Rate | 12220 Mb/s |
| Radio Chains and Streams | 2x2:2 (2,4 GHz) 4x4:4 (5 GHz) 2x2:2 (6 GHz) |
| Rx Sensitivity at 2,4 GHz | -97 dBm |
| Rx Sensitivity at 5 GHz | -100 dBm |
| Rx Sensitivity at 6 GHz | -96 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Venue Type | Education | Hospitality | MDU | Manufacturing | Office/Retail | Public Venue |
| Venue Sub-Type | Convention Floor | Lecture Hall | Transit Stations | Venue Common Spaces |
| Wi-Fi Bands Supported | 2,4 GHz | 5 GHz | 6 GHz |
| Wi-Fi Generation | Wi-Fi 7 |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax/be |
Environmental Specifications
| Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
