Switching Capacity, maximum
|
1020 Gb/s |
|
1 GbE RJ45 Ports, quantity, maximum
|
48 |
|
1 GbE SFP Ports, quantity, maximum
|
4 |
|
10 GbE SFP+ Ports, quantity, maximum
|
4 |
|
1/2.5 GbE RJ45 Ports, quantity, maximum
|
36 |
|
1/2.5/5/10 GbE RJ45 Ports, quantity, maximum
|
12 |
|
40 GbE QSFP Ports, quantity, maximum
|
4 |
|
100 GbE QSFP28 Ports, quantity, maximum
|
3 |
|
PoE Power Budget, maximum
|
2000 W |
|
Switches per Stack, maximum
|
12 |
|
Aggregate Stack Bandwidth, maximum
|
2400 Gb/s |
|
PoE/PoE+
|
Yes |
|
Stacking
|
Yes |
|
sFlow
|
Yes |
|
Layer 3 (STATIC, RIP, OSPF)
|
Yes |
|
OpenFlow with Hybrid Port Mode
|
Yes |
|
Campus Fabric Technology
|
No |
|
Redundant Power Option
|
Yes |
|
Hot Swap Internal Power Supplies & Fans
|
Yes |
|
802.3bt2 (90 W PoE Power per Port)
|
Yes |
|
VRF
|
Yes |
|
EEE (Energy Efficient Ethernet)
|
Yes |
|
IPsec VPN, with service module
|
No |
|
MACsec
|
Yes |
|
BGP
|
Yes |
|
Reversible Airflow Option
|
Yes |
|
VxLAN
|
Yes |

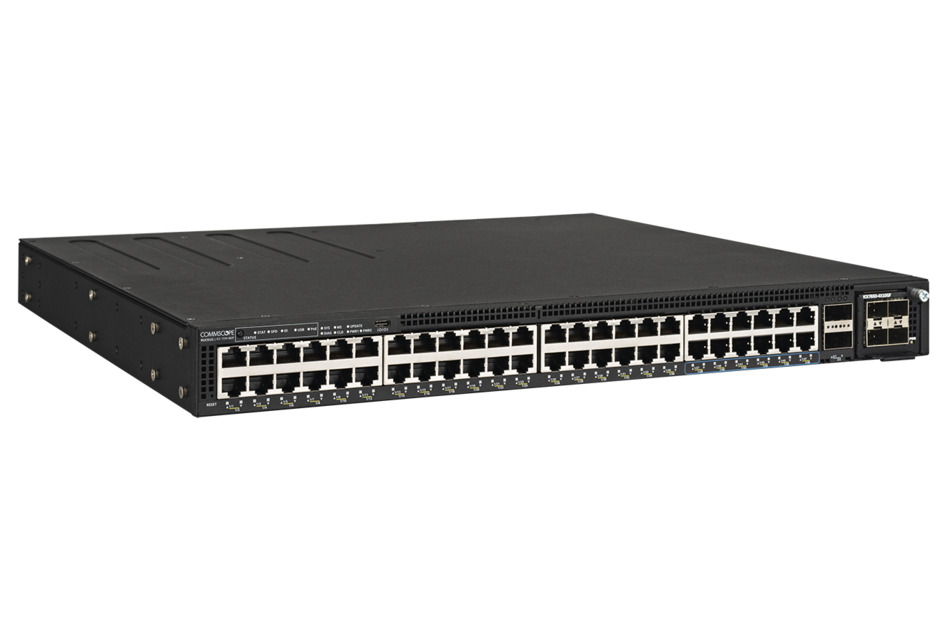

![ICX7550-48ZP | RUCKUS ICX 7550-48ZP [RUCKUS ICX 7550-48ZP]](https://productresources.commscope.com/admin/ImageServer.php?ID=68431a74839@pjk349&class=Mamfile&rand=e8aa559c4da6aec04fda2d95869bcfd7&omitPreview=true&downloadname=ICX7550-48ZP_Front.png&preset=11)
